Tri-Lock is a flexible erosion control system comprised of three directional, interlocking concrete blocks.

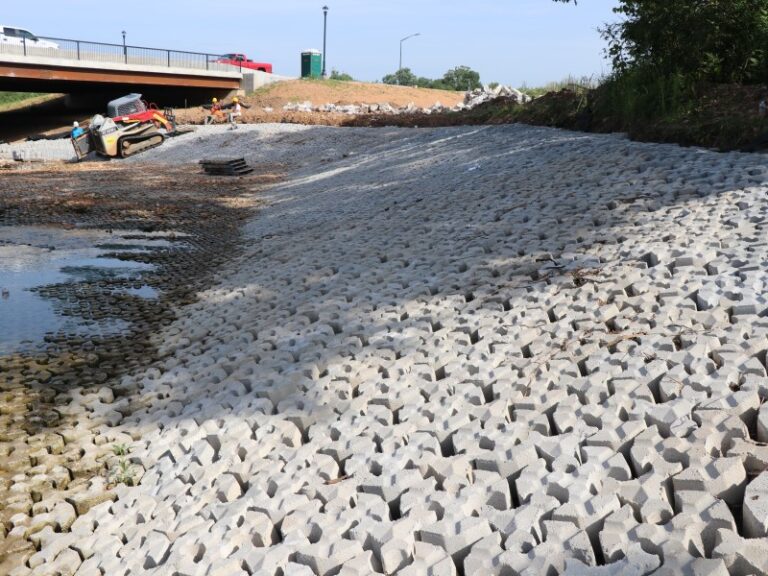

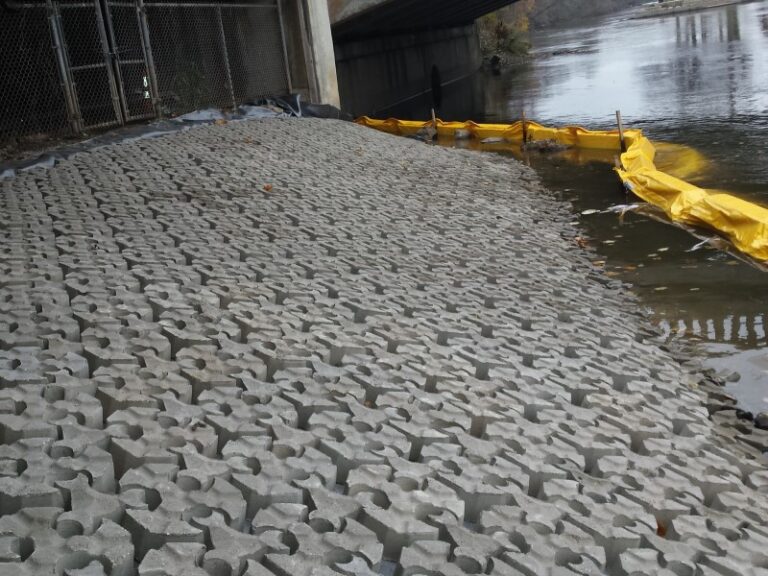

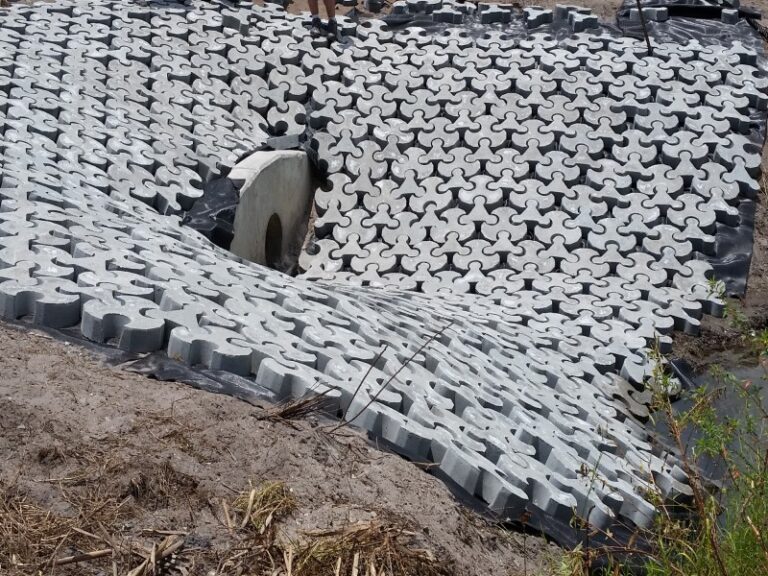

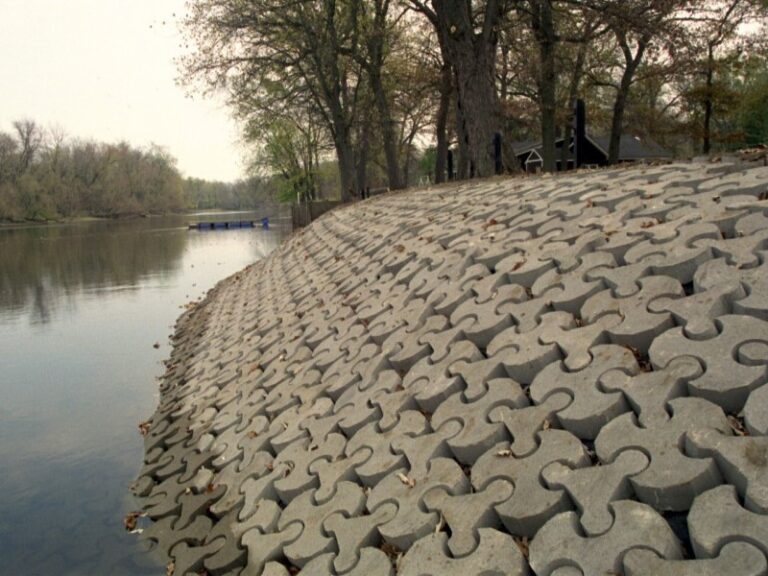

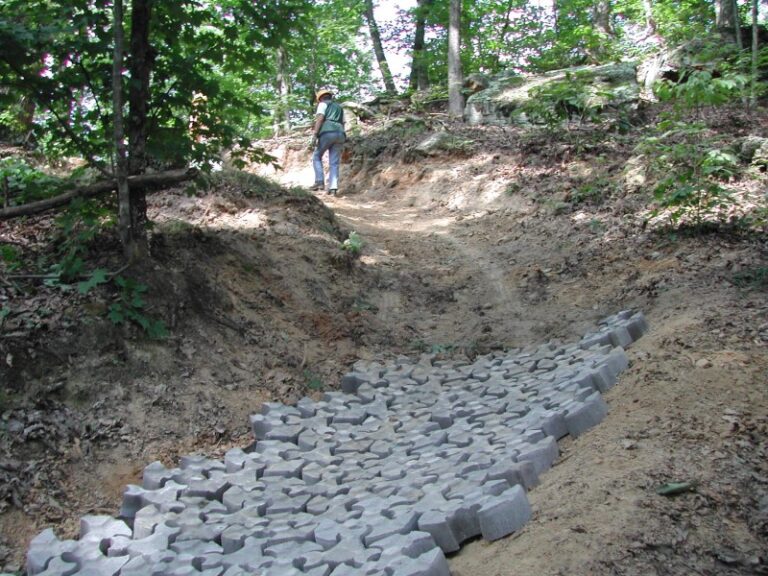

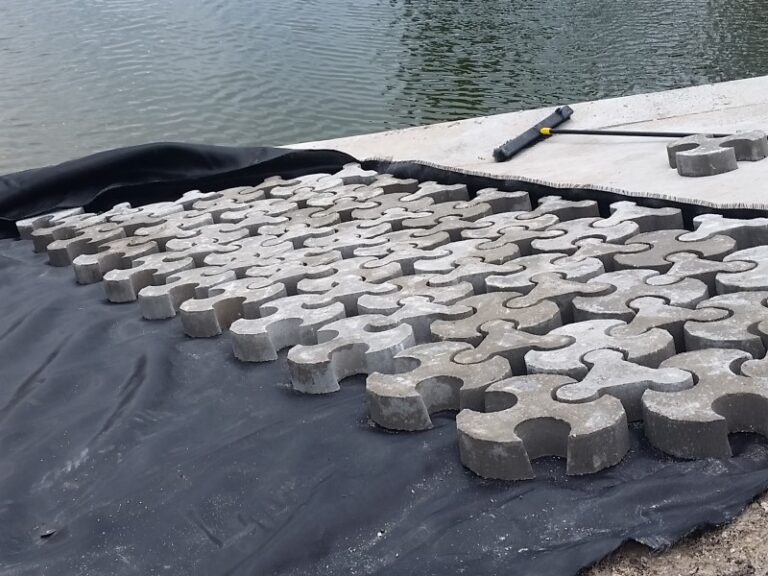

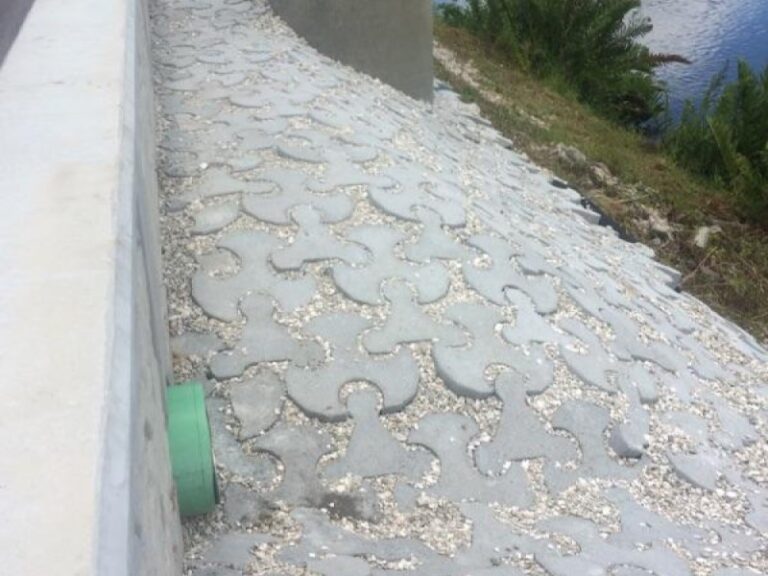

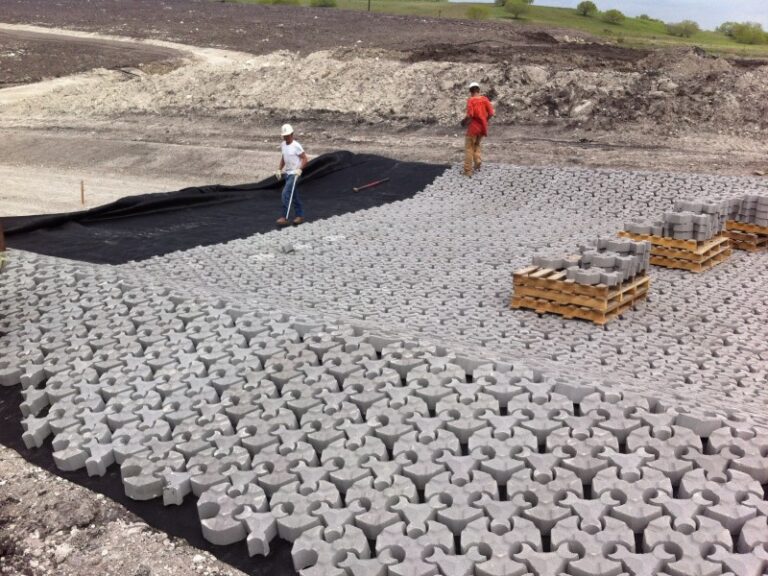

Much like traditional Articulated Concrete Block systems, or ACB’s, a Tri-Lock Block Matrix is used as a revetment solution along shorelines, drainage channels, stream banks, and anywhere else prone to erosion from flowing water or wave action.
Tri-Lock’s patented interlocking design makes it an extremely versatile erosion control system for areas where a revetment structure will need to form to varying contours in the land.
A Tri-Lock Block Matrix will traverse changes in the terrain without disrupting the integrity of the installation or compromising its effectiveness as a hard amor solution.
The Tri-Lock Blocks are dense and durable, made to take on the toughest situations.
The revetments created with Tri-Lock Interlocking Concrete Blocks will not only be flexible but porous. The voids between blocks will allow vegetation to establish over time, which will help to decrease flow velocities and improve over all appearance.
Class
Height (in.)
Approx. Weight (lb./sqft)
Compress Strength (psi.)
Area Covered (sqft)
Approx Weight blk. Pair (lb.)
Open Area
Sq ft Per Pallet
4010
4″
32 lb
Min. 4000
1.54
50 lb
20%
73.92
Class
Height (in.)
Approx. Weight (lb./sqft)
Compress Strength (psi.)
Area Covered (sqft)
Approx Weight blk. Pair (lb.)
Open Area
Sq ft Per Pallet
4010
4″
32 lb
Min. 4000
1.54
50 lb
20%
73.92
Class
Height (in.)
Approx. Weight (lb./sqft)
Compress Strength (psi.)
Area Covered (sqft)
Approx Weight blk. Pair (lb.)
Open Area
Sq ft Per Pallet
4010
4″
32 lb
Min. 4000
1.54
50 lb
20%
73.92
